Hydraulic Final Drive for Excavators KX40 KX57 KX80 KX91
Availability:
Available
Products with warranty
We match any price!
Buy now, pay later
Request product publication in SEAP
Hydraulic Final Drive for Excavators KX40 KX57 KX80 KX91
Availability:
Available

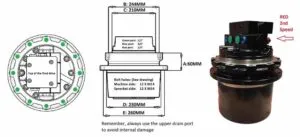

Final Drive for KX40, KX57, KX80, KX91 models. The product dimensions are as follows:
- Outer diameter: 260mm (D)
- Flange diameter: 230mm (C)
- Total height: 244mm (B)
- Base height: 60mm (A)
- Inner diameter: 210mm (C)
Connection ports:
- Green port: 1/2″
- Blue port: 3/8″
- Red port: 1/4″ – 2nd Speed
The upper drain hole must be used to avoid internal damage.
Fastening:
- Machine screws: 12 x M14
- Pinion screws: 12 x M14
