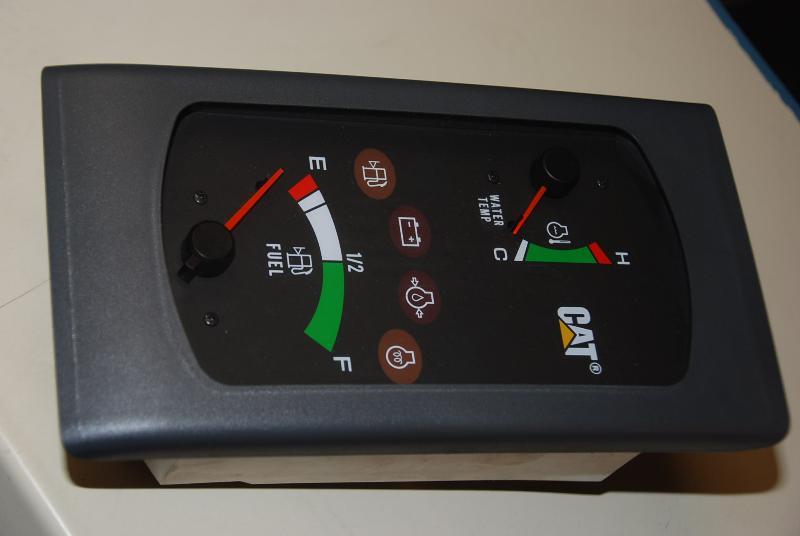

This control panel for Caterpillar machinery is equipped with indicators for fuel level and water temperature. The fuel gauge shows the remaining fuel level, ranging from “E” (empty) to “F” (full), with a green zone indicating the optimal fuel level and a red zone warning of a low level.

The water temperature gauge shows the engine temperature, with a green zone indicating normal temperature and a red zone warning of a high temperature. The panel also includes symbols for various functions and alerts, such as oil pressure and battery voltage, to ensure comprehensive monitoring of the machinery.

This control panel is ideal for use in various Caterpillar machinery, ensuring safe and efficient operation by providing essential real-time information about the machinery’s status.
